For Diesel Generator On Time Delivery 690V 1000K Watt AC Load Bank
Product Description
Our load bank,which is of independent research and development of electricity load test equipment by our technology, combining dry load module with the automatic measurement and control module, can accurately detect all kinds of generator output power and load capacity, full load and overload test.The system can be used with a computer to realize the intelligent control, automatically completing the special test to all electrical parameters of generating set and generating tables, graphs, and supporting the print, comprehensively from the cumbersome manual operation to provide scientific and efficient detection means for the power generating sets.
Technical Parameters
| Rating Voltage/Frequency |
690VAC/50Hz, 3 phase 4 wire, line |
| Rated Load Power |
Resistive load: 1000kW |
| Load Step |
1,2,2,5,10,20,20,50,100,200,200,200,200kW, min step load: 1kW |
| PF(Power Factor) |
1 |
| Load Tolerance (each step) |
±5% |
| Load Tolerance(overall) |
±3% |
| Display Precision |
0.5 class |
| Control Power |
690VAC/50Hz, |
| Wire Connection |
Load power supply input——Copper bar (star coupling)
Control power supply input——Connector-bar
|
| Insulation |
F |
| Duty Cycle |
Continuous |
| Casing Dimensions and Cooling |
about 6058mm×2438 mm×2591mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air |
| Weight |
About 6000kgs/set |
| Transportation |
Hoisting, there are lifting lug in top of casing |
| Casing Color |
Grey(RAL7035) |
| Ambient Temperature |
-10℃～+50℃ |
| Relative Humidity |
≤95% |
| Altitude |
≤2500 meter |
| Atmospheric Pressure |
86～106kPa |
| Contactor |
Schneider |
| Fuse |
DELIXI |
| MCU |
INFINEON |
| Data processing software |
Kaixiang(self-developed) |
| Alloy Resistance |
Kaixiang(self-developed) |
Product Advantage
1. Multiple control mode: (1) manual panel control (2) remote control (3)software control
2. Multiple display function: voltage, current, frequency, power factor, active power, reactive power, apparent power etc.
3. Multiple protection function: overvoltage, overcurrent, overheat, over low blowing rate, blower overheat, blower phase sequence reverse protection, smoke alarm etc.
4. Forced air cooling: industrial heavy duty fan, horizon air intake, upwards outlet, low noise.
5. Power consumption components: made by special alloy resistance, high temperature resisting, high heat dissipation capability, high heat stability, no naked light, safety and reliability. Running temperature is 1/3 of rating.
Application

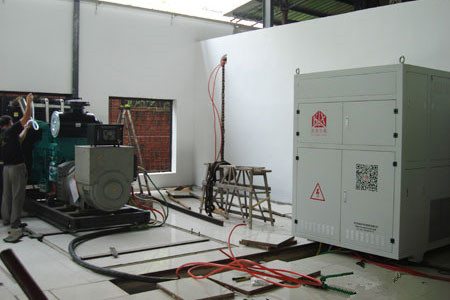

Load Banks are used with Engine Generators, Battery Systems, UPS Systems, Inverters, Ground Power Units, Auxiliary Power Units, Aircraft Power Generators, Wind Generators, and Hydro Generators.
