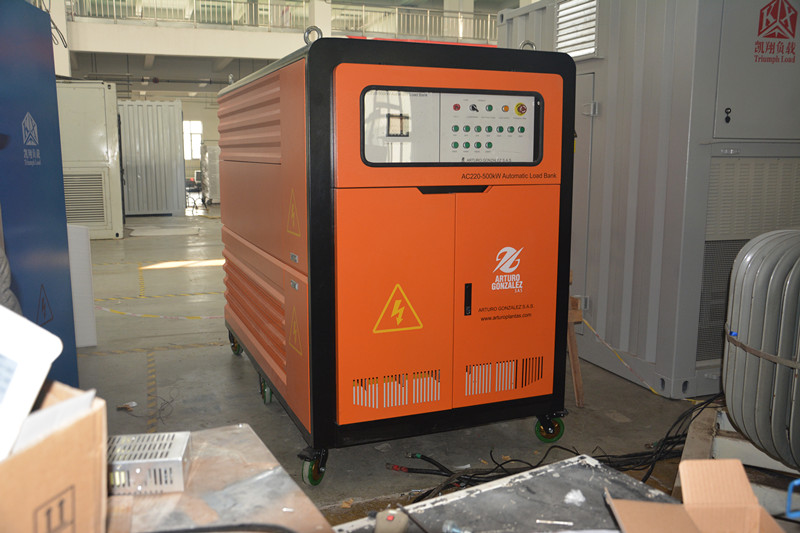

Good Performance And Frequency 220V 500KW Power Factor AC Load Bank
Product Description
The reliability of back-up power sources is vital.the use of loadbanks provides a means to commission and test the performance of power source,effectively reduces potential risks and costs..
Technical Parameters
| Rating Voltage/Frequency |
500Kw at 220VAC, 3 phase 4 wire, 50 Hz, phase voltage127V. |
| Max Load Power |
Resistive load:510kW |
| Load Steps |
11 steps, Resistive load:1kW,2kW,2kW,5kW,10kW,20kW,20kW,50kW, 100kW, 100kW, 200kW min load step: 1 kW |
| PF(Power Factor) |
1 |
| Load Accuracy (each step) |
±5% |
| Load Accuracy (overall) |
3% |
| Display Precision |
0.5 grade |
| Control Power |
380VAC, 3 phase 4 wire, 50 Hz, phase voltage220V (with a small transformer: change 277V to 220VAC Single phase |
| Wire Connection |
Load power supply input——star coupling
Control power supply input——terminal block
|
| Insulation |
F |
| Way of Working |
Continuous Work |
| Cooling |
Fan forced cooling, horizontal inlet air and vertical outlet cooling |
| Casing Color |
Grey(RAL7035) |
| Dimensions |
1460 mm*1980mm*1800mm(length*wide*high) |
| Weight |
About 750kgs |
| Temperature |
-10℃～+50℃ |
| Relative Humidity |
≤95% |
| Altitude |
≤2500 meter |
| Contactor |
Schneider |
| Fuse |
DELIXI |
| Alloy Resistance |
(self-developed) |
Product Advantage
Kaixiang company is in leading position in generator set testing and maintenance industry, besides general functions, its load bank has following unique advantages:
1. Standard Testing Function: The load bank can do stable test, transient test, and realize functions, such as setting, fluctuation, instant load, and instant unload.
2. Super Power Load: high load power density, large capacity of single set, parallel running to finish super power testing, and realize tens of megawatts of power loading.
3. Protection button: there are some protection buttons can be switched off when false alarm or for special requirements.
Application
Load Banks are used with Engine Generators, Battery Systems, UPS Systems, Inverters, Ground Power Units, Auxiliary Power Units, Aircraft Power Generators, Wind Generators, and Hydro Generators.
